Product Description：

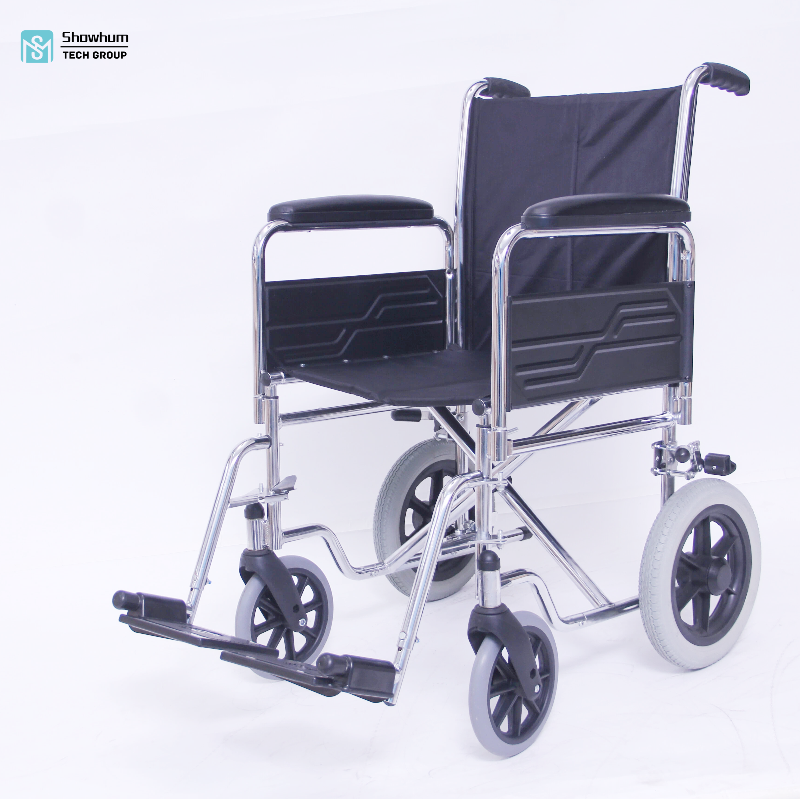

Manual Wheelchair M801 / M801C
Wrap-around Armrest Wheelchiar
Stylish compact, slim design
Detachable full armrests
Detachable swing away footrests with calf straps
Standard Push to lock brakes
Vinyl upholstery is easy to clean
Limited lifetime warranty on frame
Optional desk armrests allows chair to be close to tables and washbasins
| CM801Wrap-around Armrest Wheelchair | ||||
| Weight Capacity | 110kg/ 243lb | |||
| Seat Width | 16", 17", 18", 19" | |||
| Item Weight | 17-22.5kg/ 37-50lb | |||
| Castor | 8" x 2" | |||
| Rear Wheel | M801: 24" x 1-3/8" ; M801C: 12" x 2-1/2" | |||
| Armrest | detachable, full | |||
| Footrest | E&J, detachable, swing away | |||
| Backrest | fixed | |||
| Dimension | M801:107x62x92cm;M801C: 79x62x92cm | |||

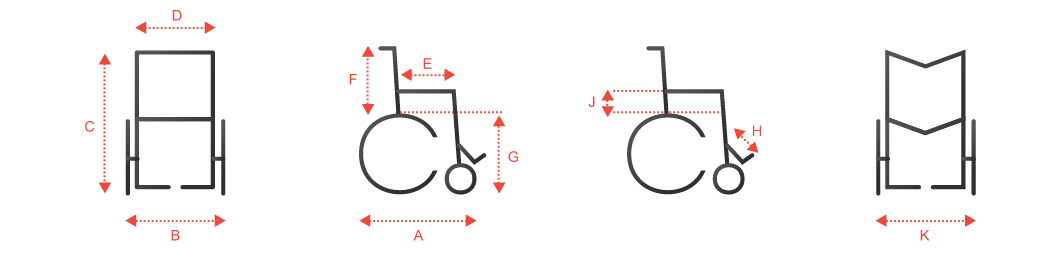

Dimensions
| seat dimensions [cm/in] | footrests | arms | ||||||
| D | E | F | G | H | J | |||
| 16" | 40/16 | 40/16 | 43/17 | 51/20 | 40-53/16-21 | 10/25 | ||
| 17" | 43/17 | 40/16 | 43/17 | 51/20 | 40-53/16-21 | 10/25 | ||
| 18" | 46/18 | 40/16 | 43/17 | 51/20 | 40-53/16-21 | 10/25 | ||
| 19 | 48/19 | 40/16 | 43/17 | 51/20 | 40-53/16-21 | 10/25 | ||
| overall dimensions | weight [kg/lb] | |||||||
| A | B | C | K | ttl. weight | capacity | |||
| M801 | M801c | M801 | M801c | |||||
| 16" | 107/42 | 79/31 | 57/22.5 | 92/36 | 10/25 | 22/48 | 17/37 | 110/243 |
| 17" | 107/42 | 79/31 | 59/32 | 92/36 | 10/25 | 22/48 | 17/37 | 110/243 |
| 18" | 107/42 | 79/31 | 62/24.5 | 92/36 | 10/25 | 22.5/50 | 17.5/39 | 110/243 |
| 19" | 107/42 | 79/31 | 64/25 | 92/36 | 10/25 | 22.5/50 | 17.5/39 | 110/243 |
